Description

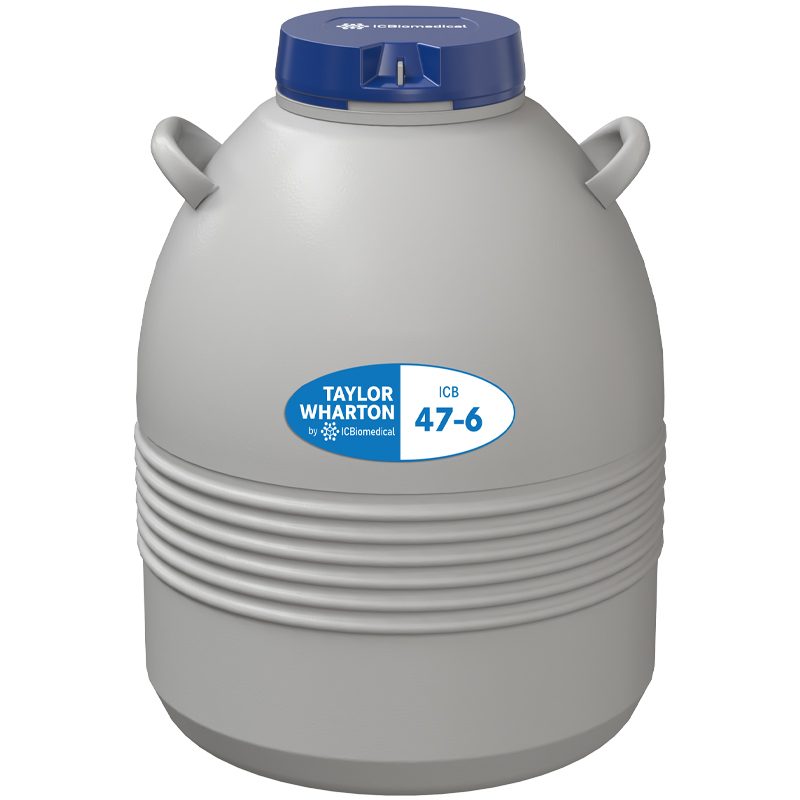

The ICB 47-6 is a high-capacity LN2 freezer for laboratory and biorepository applications, offering a superior combination of large storage capacity and low liquid nitrogen consumption.
FEATURES
- Extended Hold Time: With a static hold time of 76 days, this unit ensures prolonged preservation of your valuable samples.
- High-Capacity Storage: Accommodates up to 3,900 1/2 cc straws, making it an excellent choice for large sample collections.
- Durable Construction: Built with a rugged ribbed high-strength aluminum body and a durable paint finish to withstand demanding environments.
- Superior Insulation: Utilizes advanced insulation technology to deliver maximum holding times and superior vacuum performance.
Download ICB 47-6 Overview (pdf)
| SPECIFICATIONS | Item |
|---|---|
| LN2 Capacity (L) | 48 |
| Static Hold Time (Days) | 76 |
| Evap. Rate (Liters/Day) | 0.390 |
| DIMENSIONS | |
| Necktube (in/mm) | 5 / 127 |
| Height (in/mm) | 26.5 / 673.1 |
| Overall Dia. (in/mm) | 20 / 508 |
| WEIGHT | |
| Empty (Lbs) | 31.5 / 14.3 |
| Full Weight (lb/kg) | 120 / 54.4 |
| CAPACITY | |
| Canister Diameter (in/mm) | 4.0 / 101.6 |
| Number of Canisters | 6 |
| # of .05 cc Straws (10/Cane) | 3900 |
